Multi-subunit RNA polymerase composition

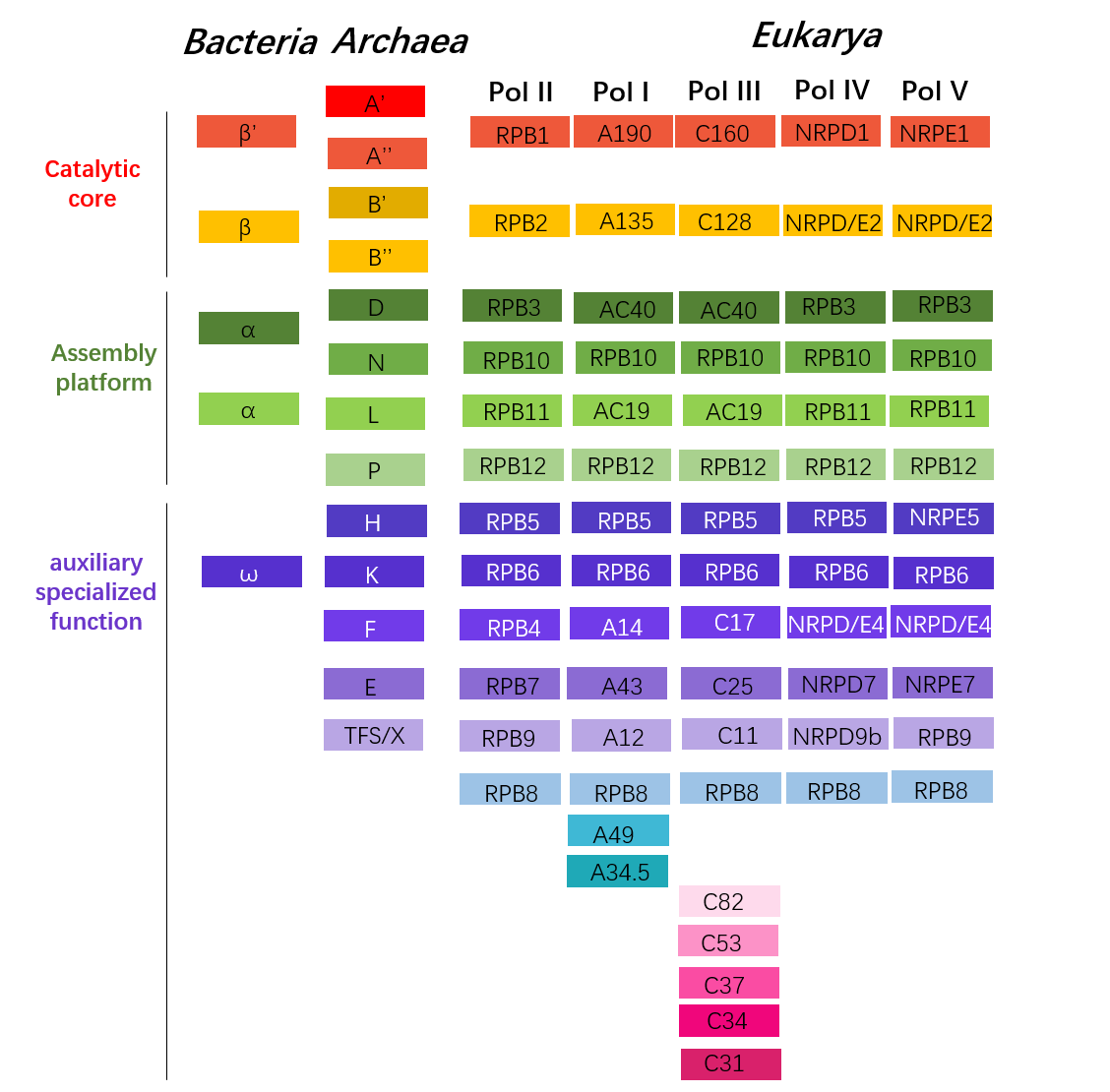

Subunit alignment table of multi-subunit RNA polymerase is shown, same color represents homologous subunits. Generally, the RNA core polymerase of prokaryotes contains 5 subunits, the RNA polymerase of archeae has 13 subunits, and there are three main types of eukaryotic RNA polymerases: RNAPI (14 subunits), RNAPII (12 subunits) subunits) and RNAPIII (17 subunits).

Multi-subunit RNA polymerase transcription factors

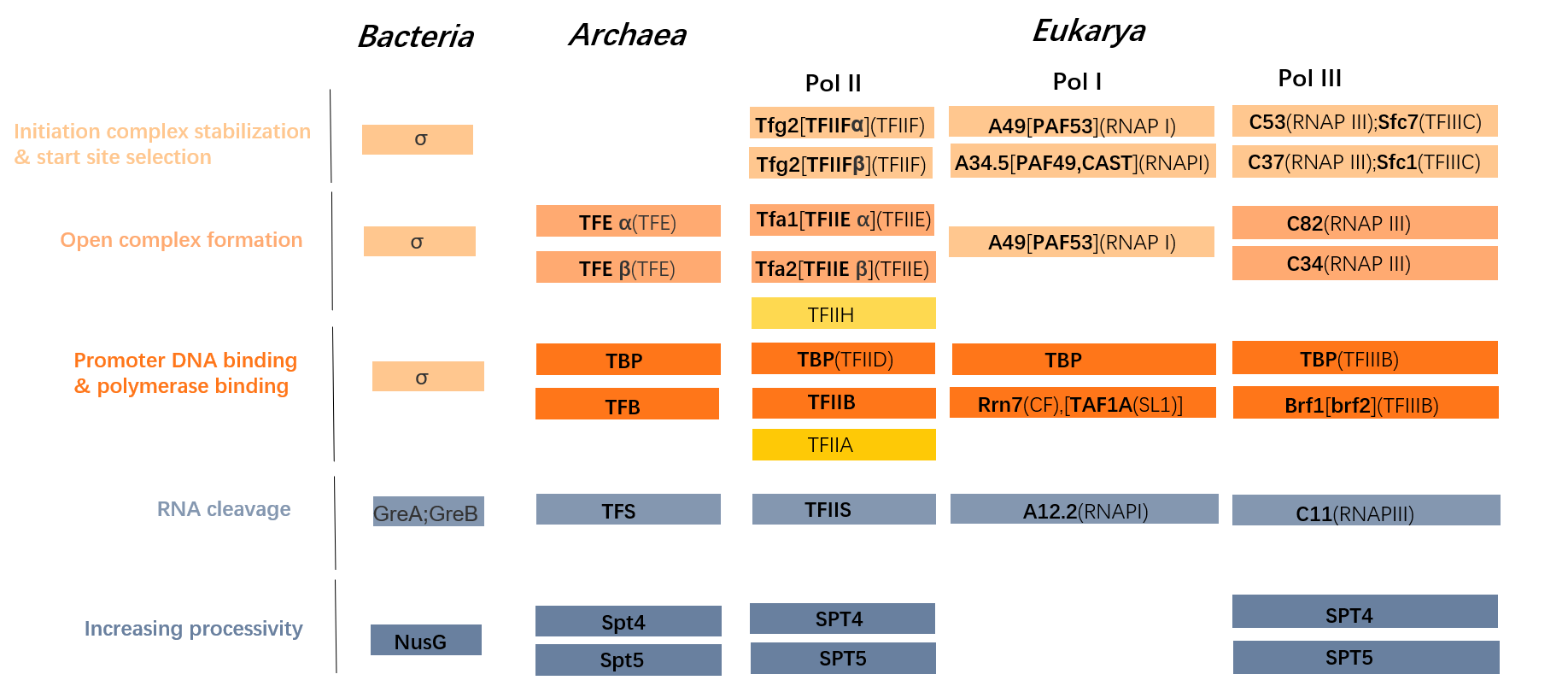

Table of transcription factors for multisubunit RNA polymerases is shown. Same color represents homologous transcription factors.

TBP,TATA box-binding protein.Factors with structural homologies are marked in bold letters. The yeast name and the mammalian name (in squared brackets) of the homologous protein are given. If these proteins are complex components, the name of the respective complex is depicted in round brackets.

Conserve and diverse subunits mapping on structure of multi-subunit RNA polymerase

   Crystal structure of multi-subunit RNA polymerase:

Structure of multisubunit RNA polymerase are shown. Same color represents homologous subunits

Prokaryote

4 subunits
PDB code:2O5I
Download pymol session file
Archaea

11-13 subunits

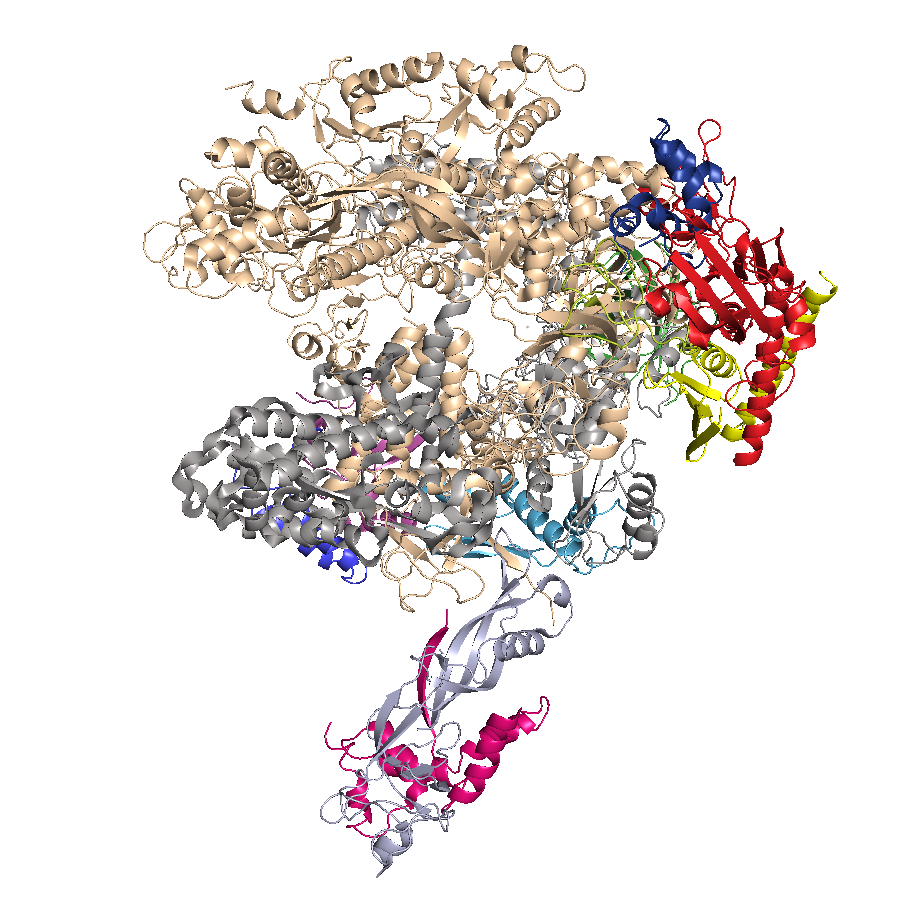

PDB code:2WAQ
Download pymol session file
Eukaryote

RNAP I

12 subunits
PDB code:4C3H
Download pymol session file
RNAP II

15 subunits
PDB code:1Y1W
Download pymol session file
RNAP III

17 subunits
PDB code:5FJ8
Download pymol session file

   Scheme of multi-subunit RNA polymerase subunit composition:

The relative positions of subunits of multisubunit RNA polymerase are shown. Same colors represent homologous subunits.

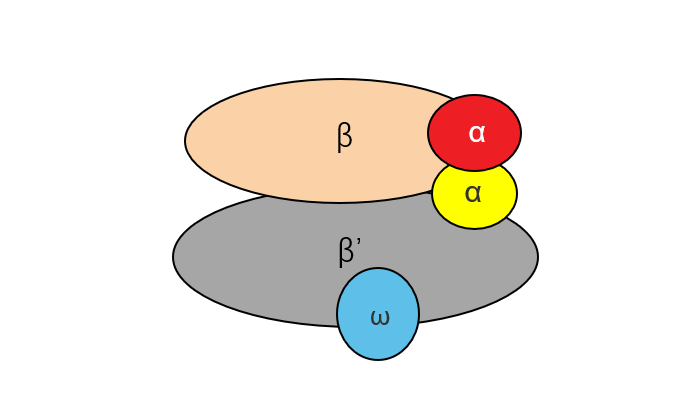

Prokaryote

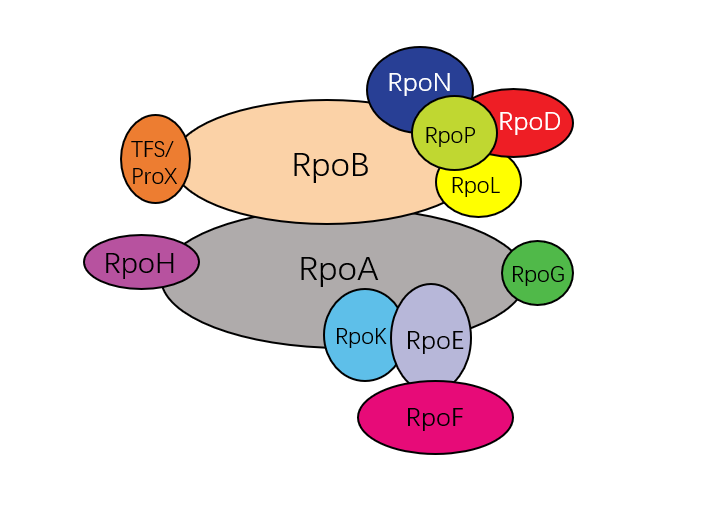

Archaea
RNAP I
RNAP III
RNAP II

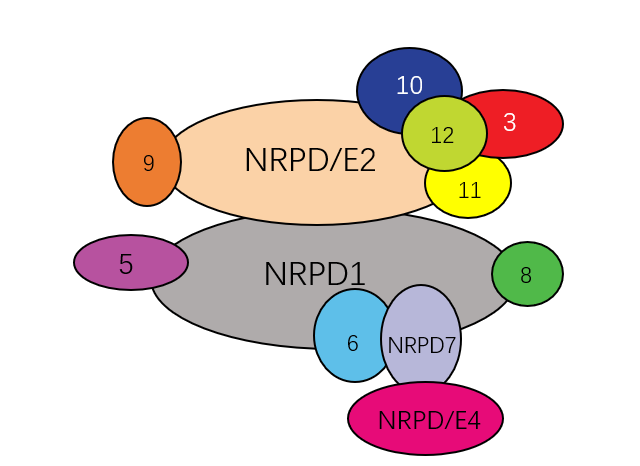

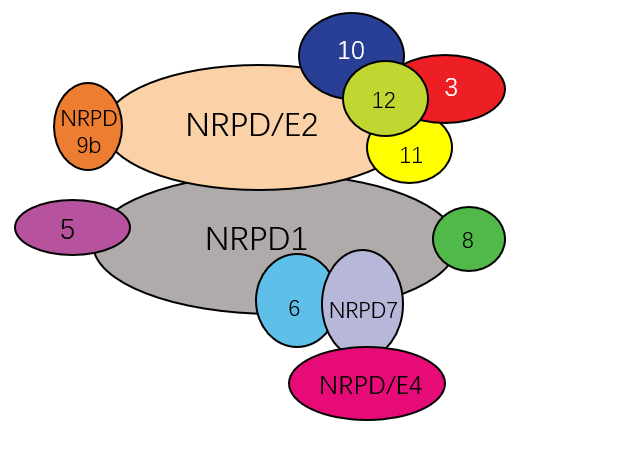

RNAP IV
RNAP V

   Eukaryotic RNA polymerase subunit interaction:

Interactions between subunits of eukaryotic RNA polymerases are shown. The thickness of the black line represents the strength of the subunit interaction.

RNAP I
RNAP II

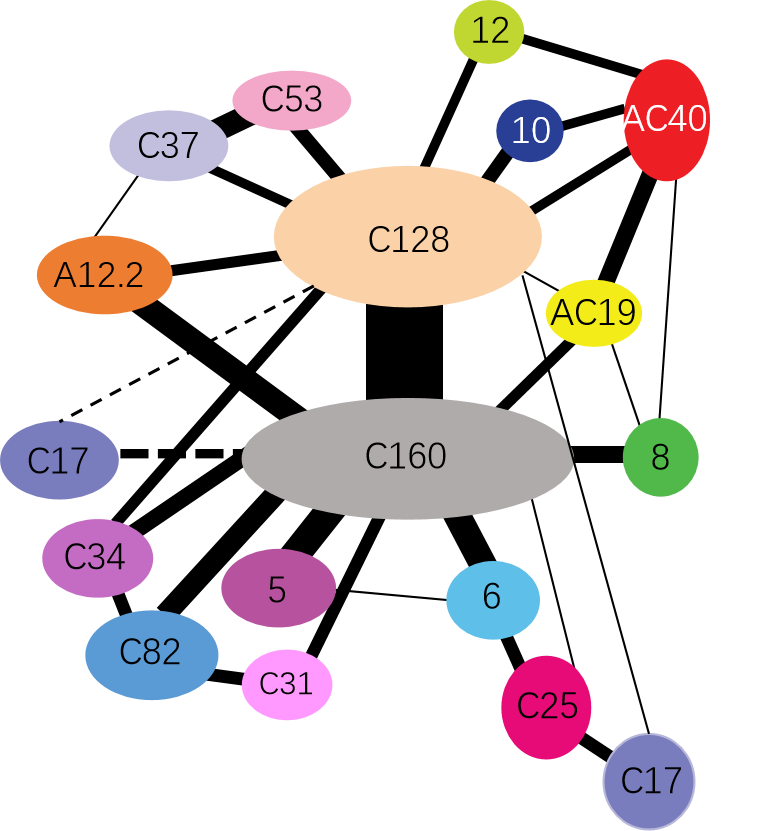

RNAP III

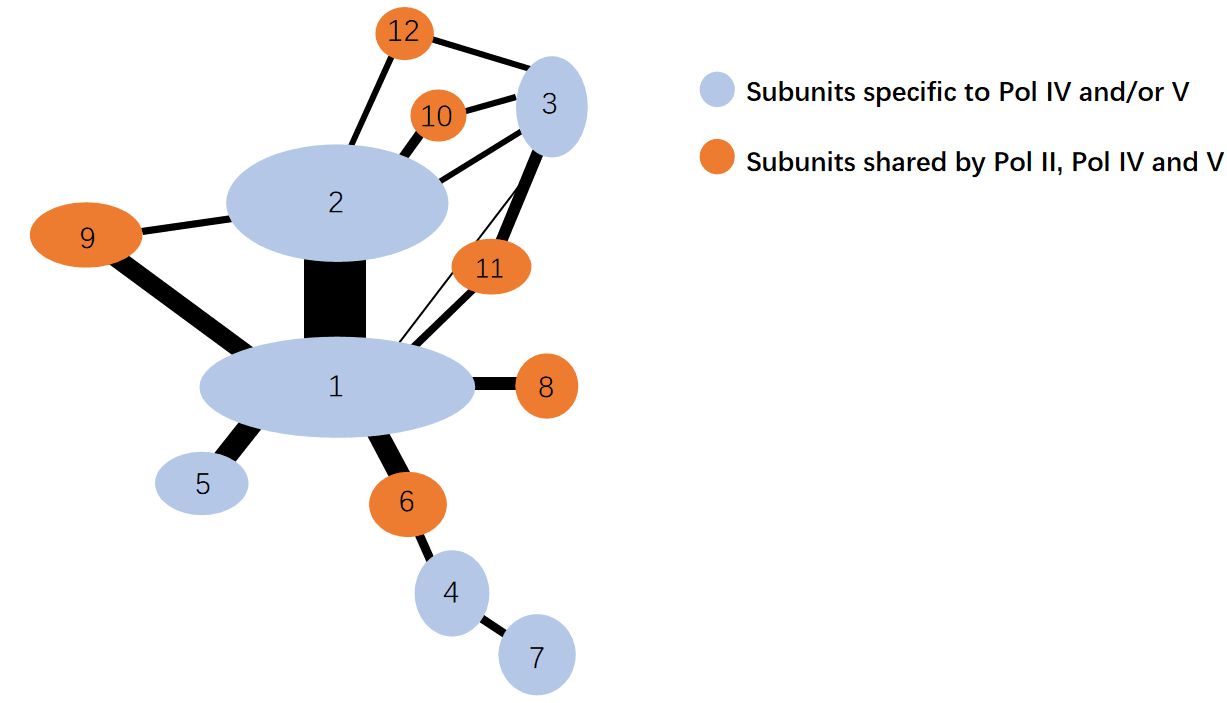

Shared and distinct subunits of Pol II vs IV or V

Single-subunit RNA polymerase overall structure

Structures of single-subunit RNA polymerase are shown: single-strand positive RNA virus, single-strand negative RNA virus, double-strand positive RNA virus and double-strand DNA virus.

Single-strand positive RNA virus
Organism:Human poliovirus
PDB code:1HHS
Download pymol session file
Single-strand negative RNA virus
Organism:Influenza A virus

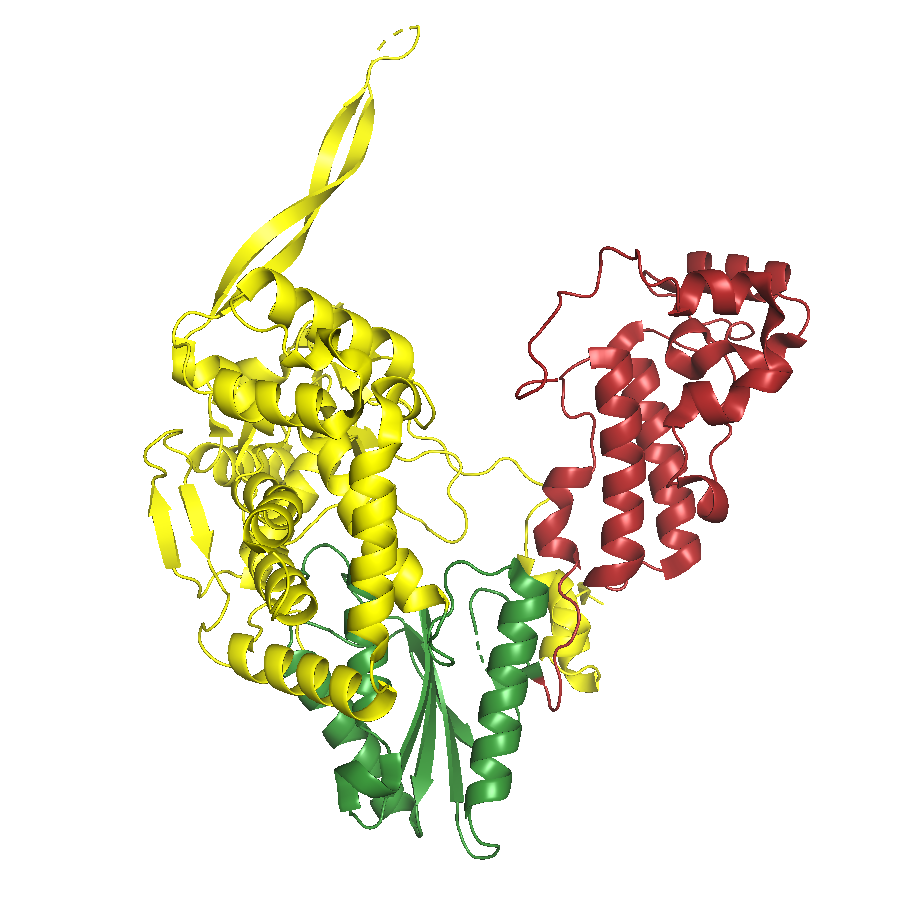

PDB code:4WSB
Download pymol session file

Double-strand positive RNA virus
Organism:Pseudomonas virus phi6
PDB code:4A8F
Download pymol session file
Double-strand DNA virus
Organism:Escherichia phage T7
PDB code:1S0V
